VONOA Carbon Spoke
★ High strength: Mechanical lock, glue free.
★ Ultimate tensile strength 4000N.
★ Ultra light &Ultra aero: 1.9g lightest &Φ1.8 thinnest.
★ High stiffness performance on the wheel.

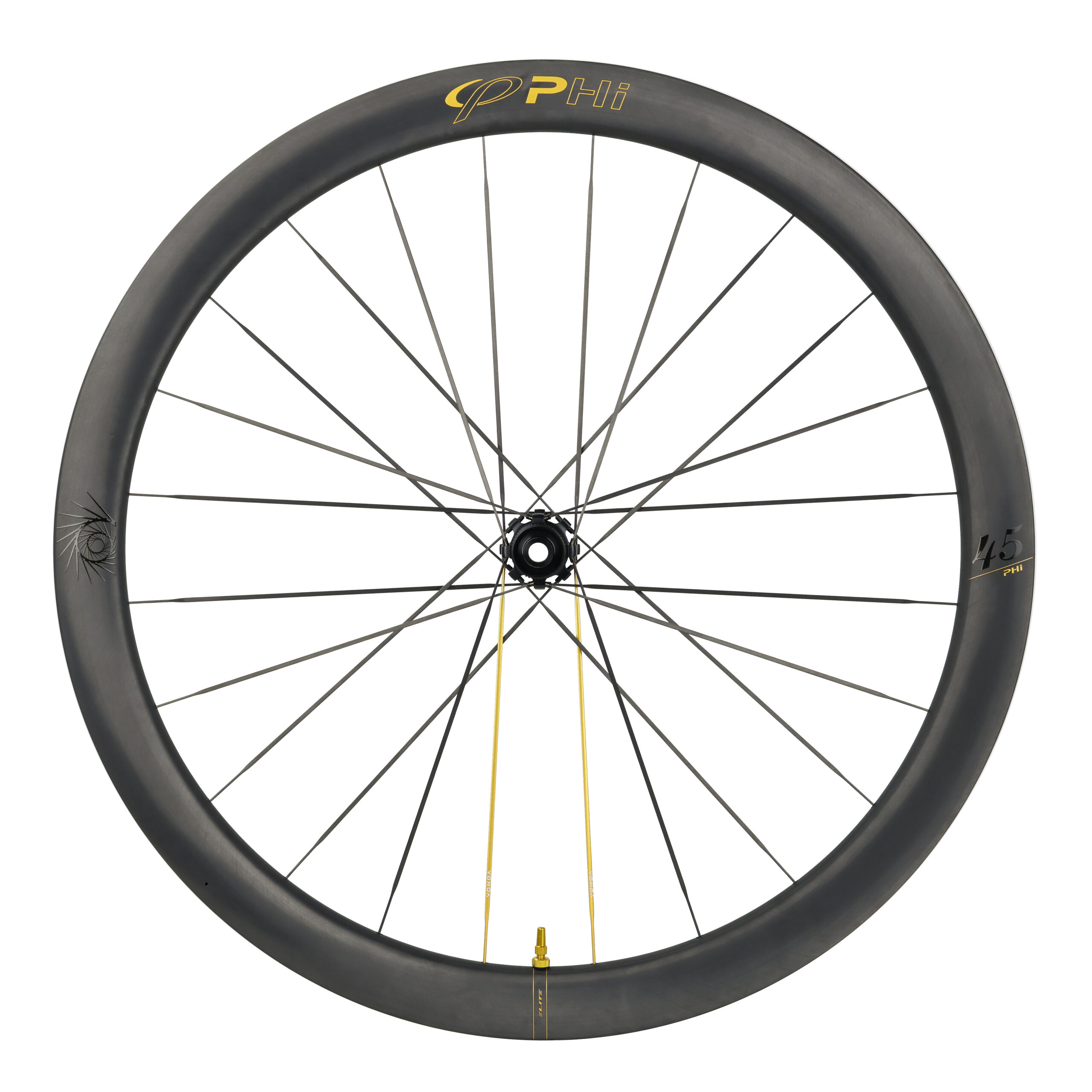

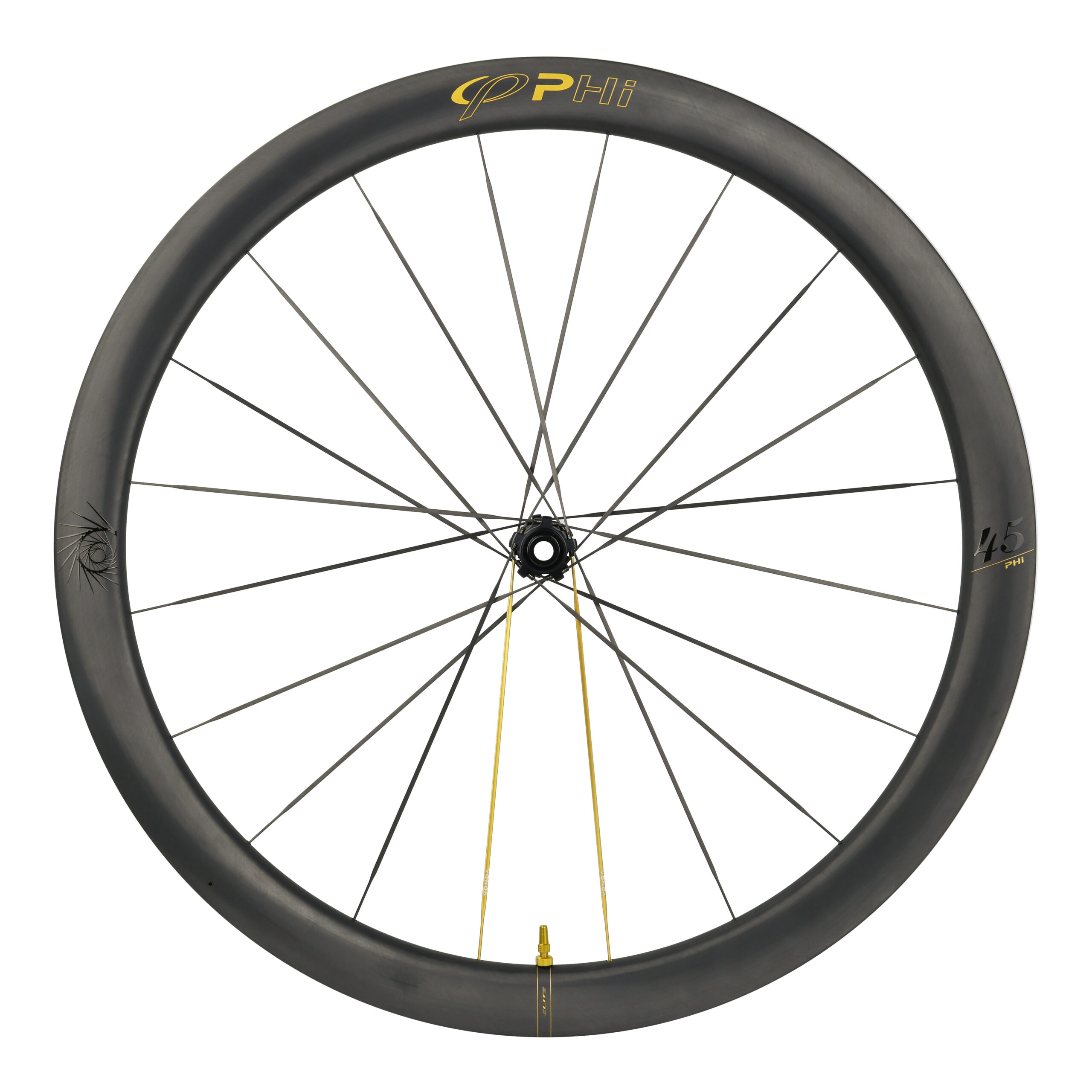

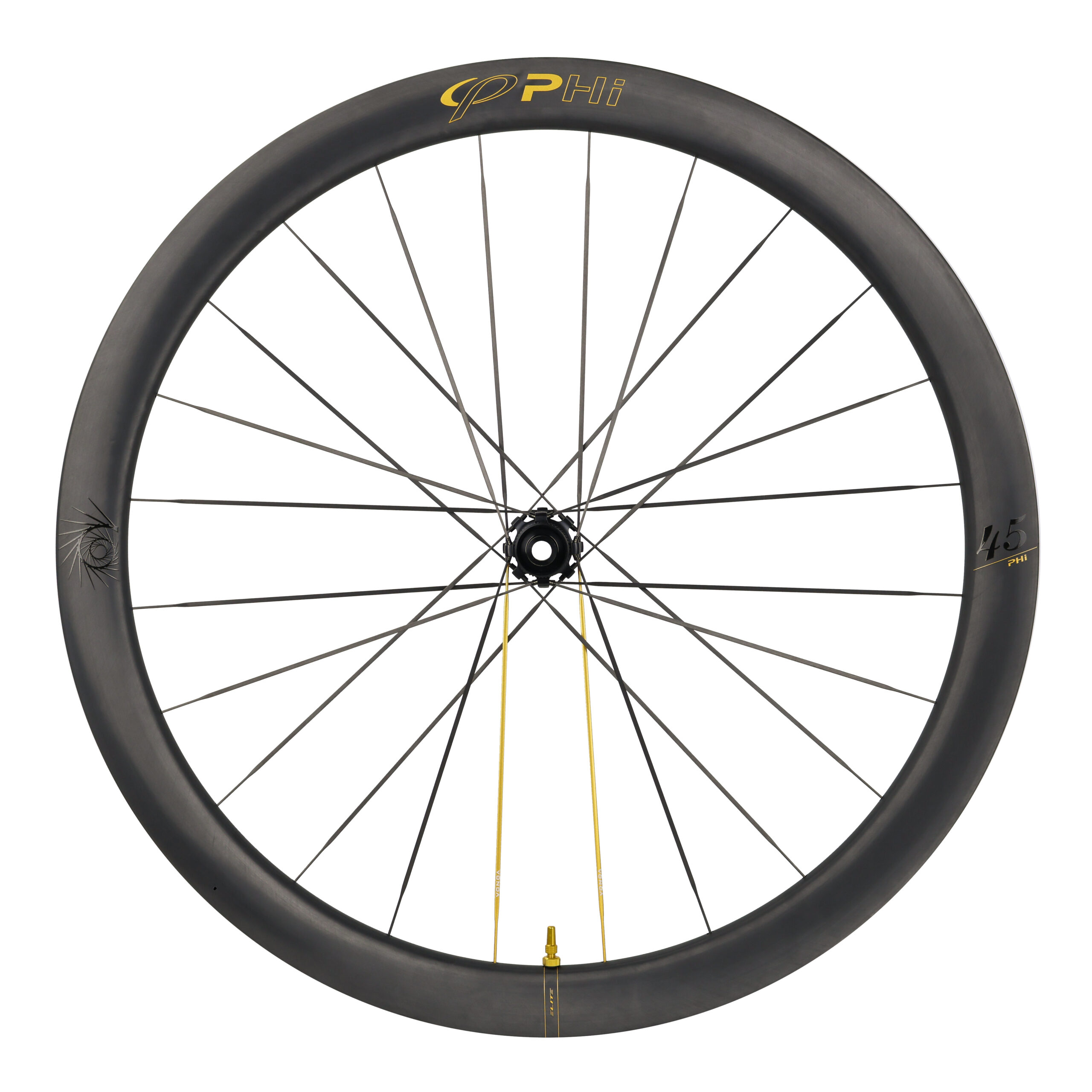

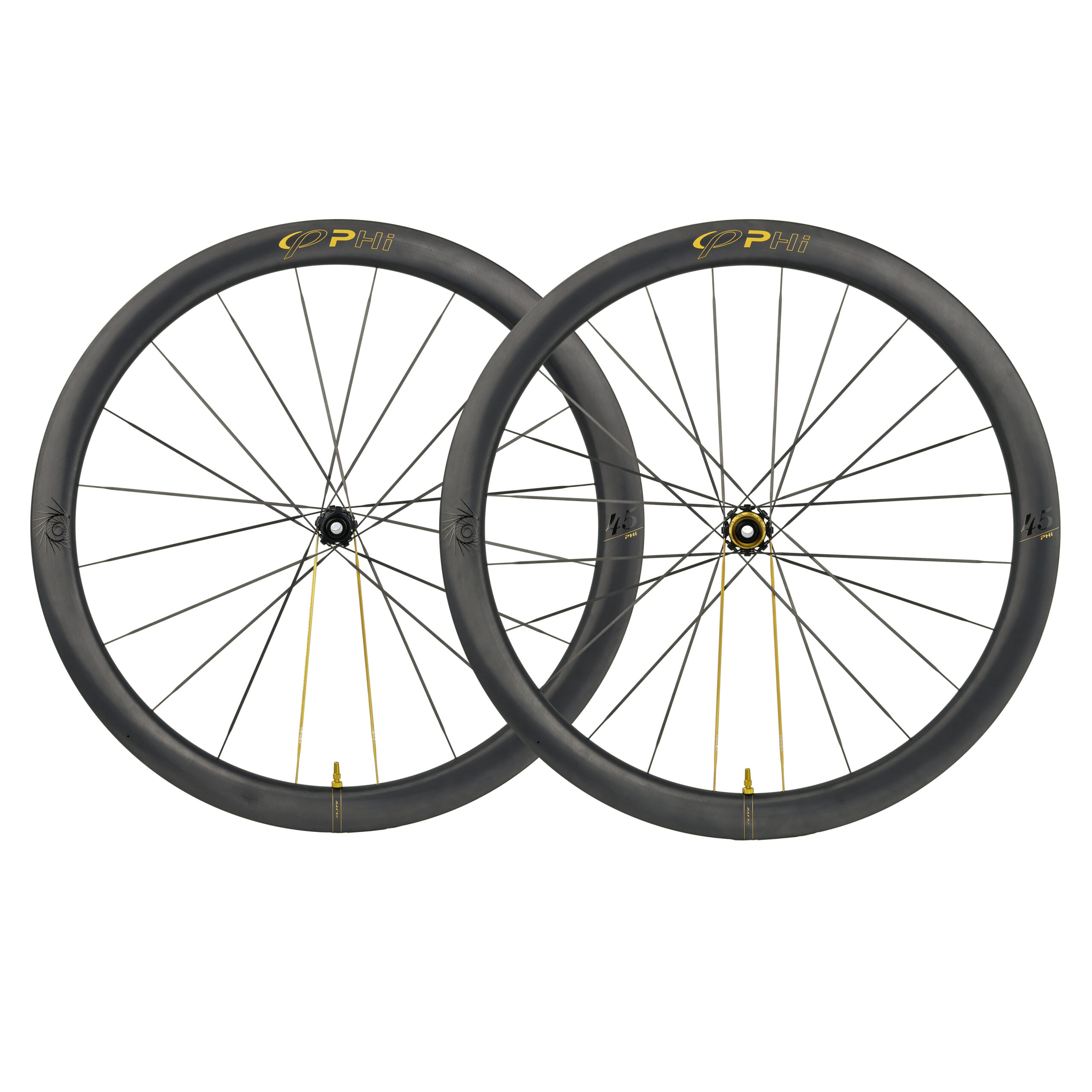

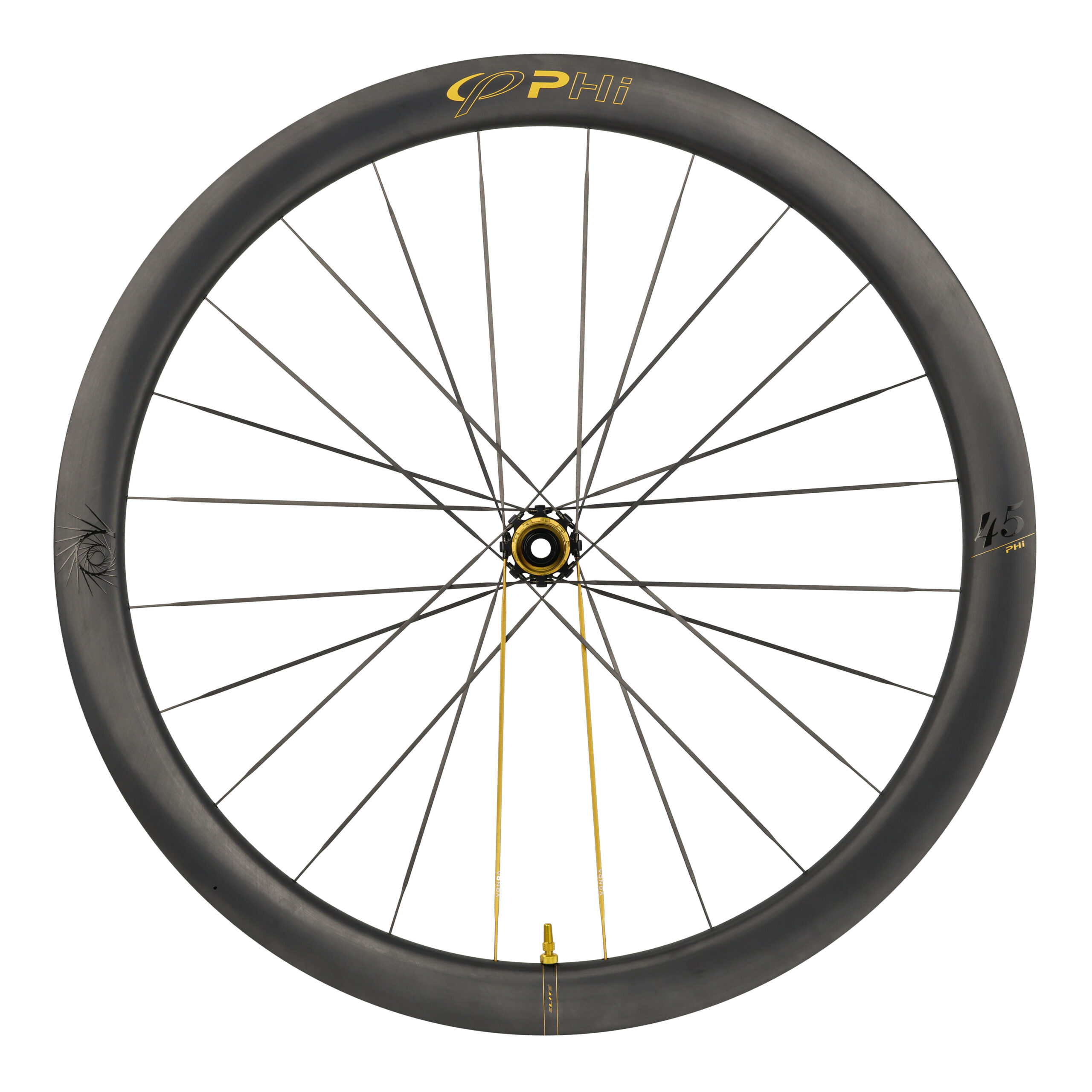

Elite Series | The Ultimate All-Round Performer
Engineered with ultra-light VONOA replaceable carbon spokes and precision-engineered carbon rims, the Elite Series delivers exceptional stiffness, responsiveness, and weight efficiency.
Available in 35mm, 45mm, and 62mm rim depths, the range is optimized for diverse terrain — from steep climbs to high-speed racing.
With weights ranging from 1100g to 1300g, it achieves the ideal balance of climbing efficiency and aerodynamic performance, created for riders demanding uncompromising all-round race performance.
€2,178.00
| Rim | |
| Wheel Size | 622mm(700c) |
| Material | Carbon Fiber |
| Tire Compatibility | Tubeless Ready |
| Bead Type | Hooked |
| Rim Depth | 35mm |
| Inner Width | 22mm |
| Outer Width | 30mm |

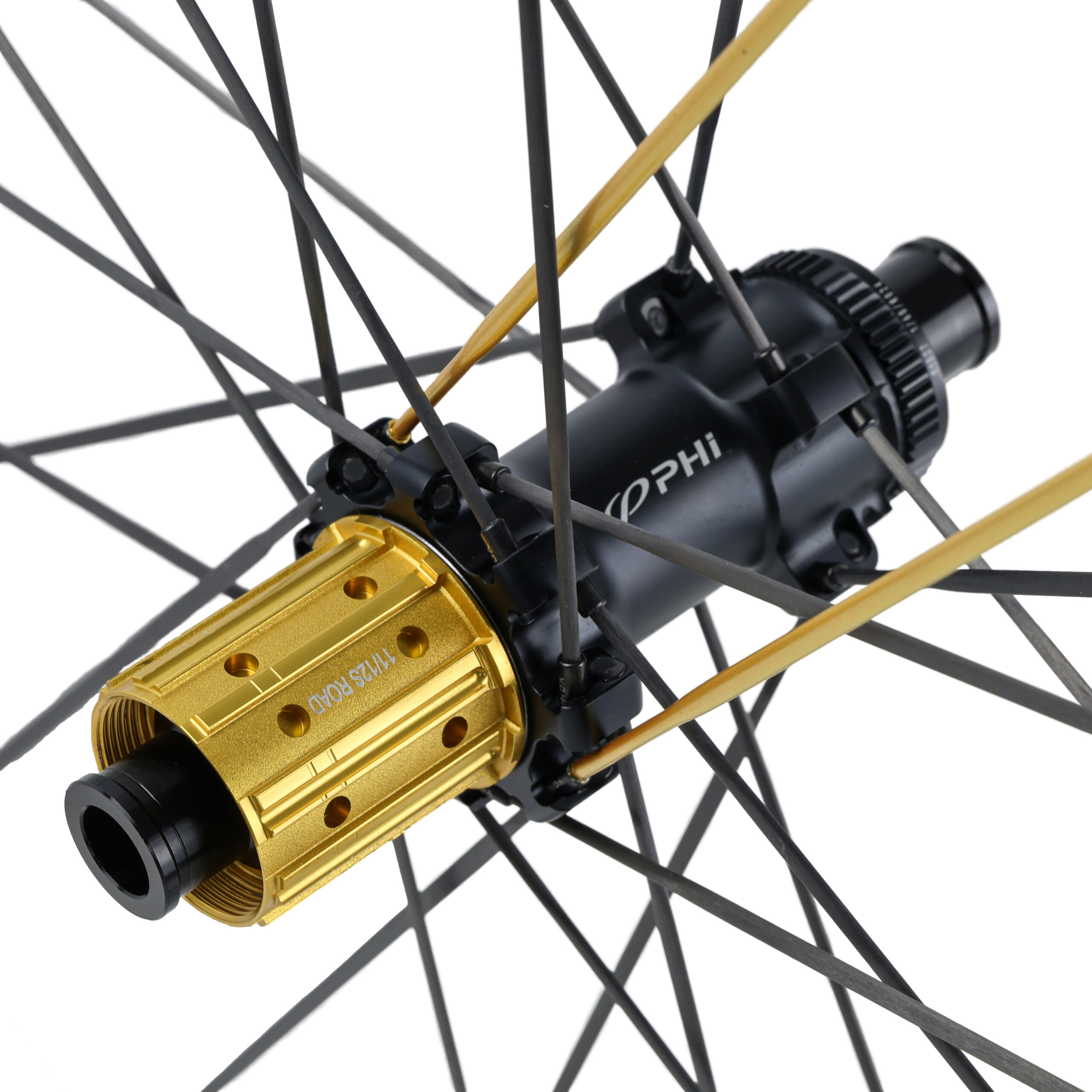

| Hub | |
| Front Hub Spacing | 12x100mm |
| Rear Hub Spacing | 12x142mm |
| Bearing | TPI Ceramic |
| Brake Compatibility | Disc (Center Lock) |
| Freehub Type | Ratchet |
| Freehub Compatibility | Shimano HG/ SRAM XDR |
| Other | |
| Rim Finish | Raw Finish |
| Included Accessories | Pre-Installed Tubeless Valves & Tapes |
| Weight (Pair) | 1091g±3%(Without tubeless valves and tapes) |
| Max load, Bike + User (Kg) | 270lbs/120kg |
| Compatible Tire Sizes | 700 x 28-45C |
| Recommended Tire Sizes | 700 x 28-30C |
| Certification | UCI Approved |
| Spoke | |
| Spoke Count | 20F/24R |
| Spoke Type | VONOA SLR320 Lightweight Carbon Spoke |
★ High strength: Mechanical lock, glue free.
★ Ultimate tensile strength 4000N.
★ Ultra light &Ultra aero: 1.9g lightest &Φ1.8 thinnest.
★ High stiffness performance on the wheel.
High automation level. In-mold finished without drilling, polishing and painting.
Aerodynamics and ergonomic purpose.
★ Excellent performance control.
★ Appearance is perfect after curing, reduces the subsequent processing.
★ Realize the design and production of complicated profiles.
★ Reduce the energy consumption: 70%.
★ Spokes and hub one piece integrated.
★ Adjustable spoke tension.
★ Faster acceleration, more agile steering, more stable handling, and superior aerodynamic performance.
★ Improved Lateral Stiffness.
★ Superior Aerodynamics.
★ Tubeless Compatibility.
★ Easier maintenance and convenient adjustment.
